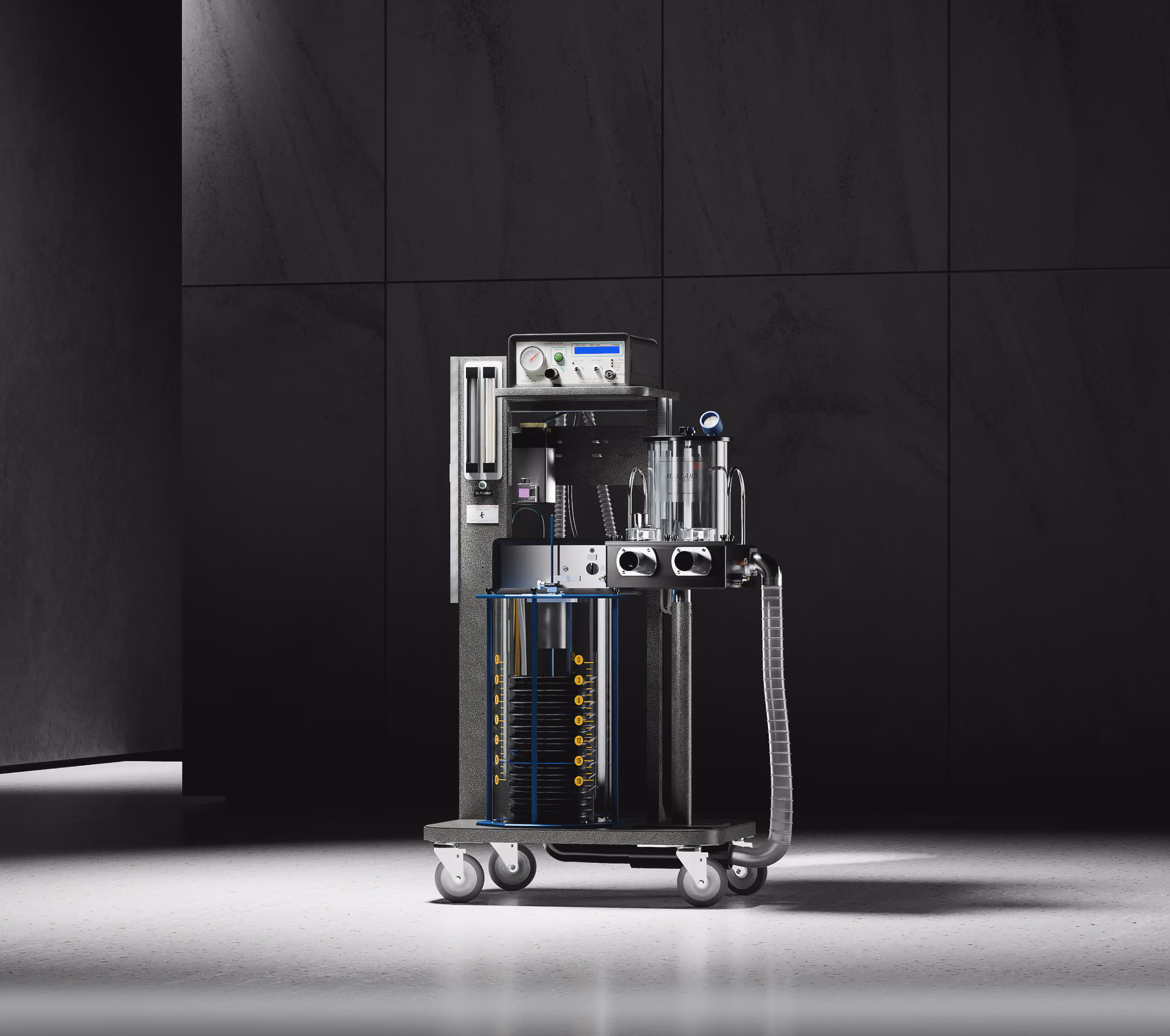

Model 2800C Large Animal Anesthesia Ventilation System

The world's most reliable large animal ventilator.

Microprocessor based ventilator for ease of use and superior performance

Large, easy to read LCD display of respiratory values

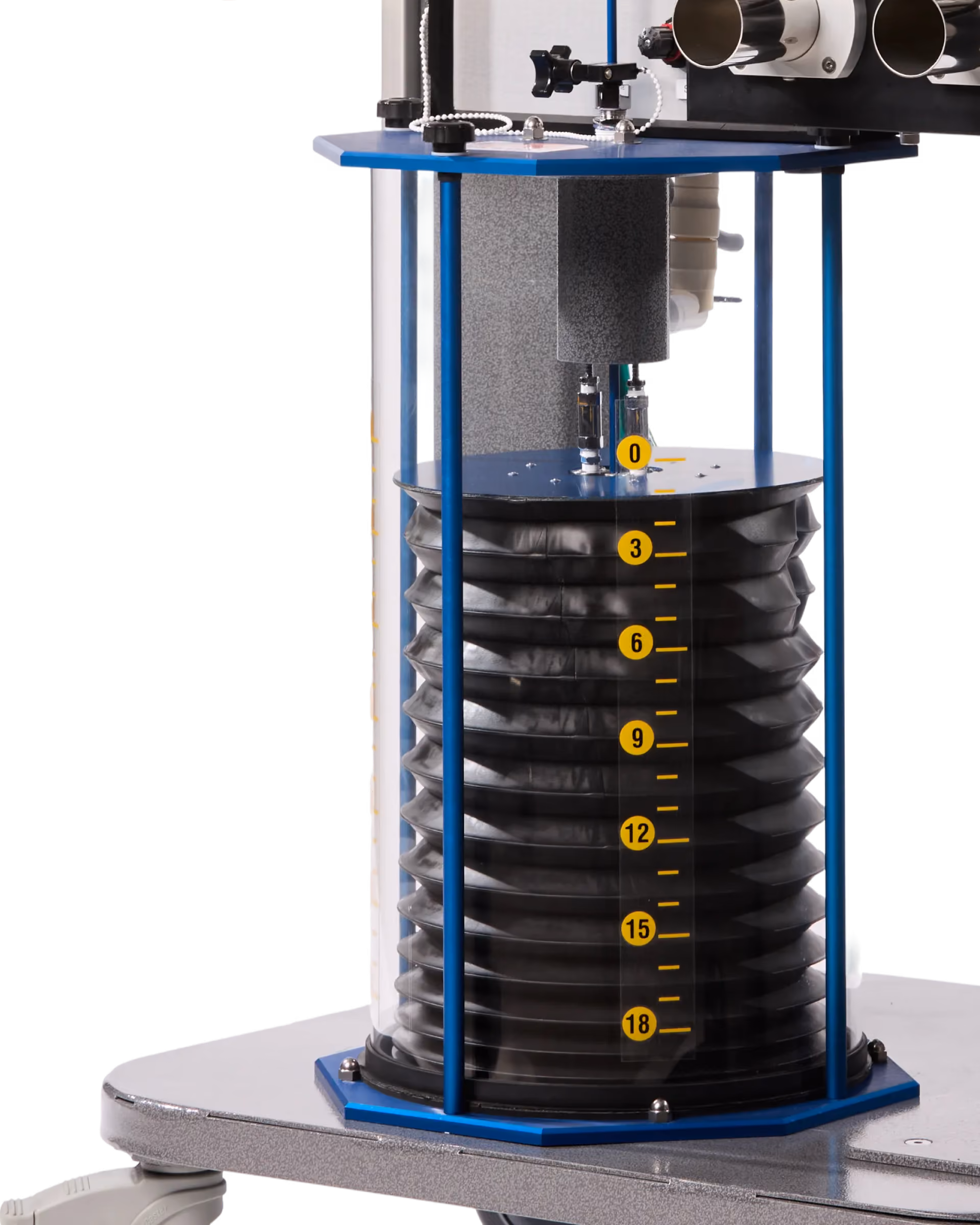

Ascending bellows (18 liters) reduces the patient's work of breathing

Quietest ventilator on the market

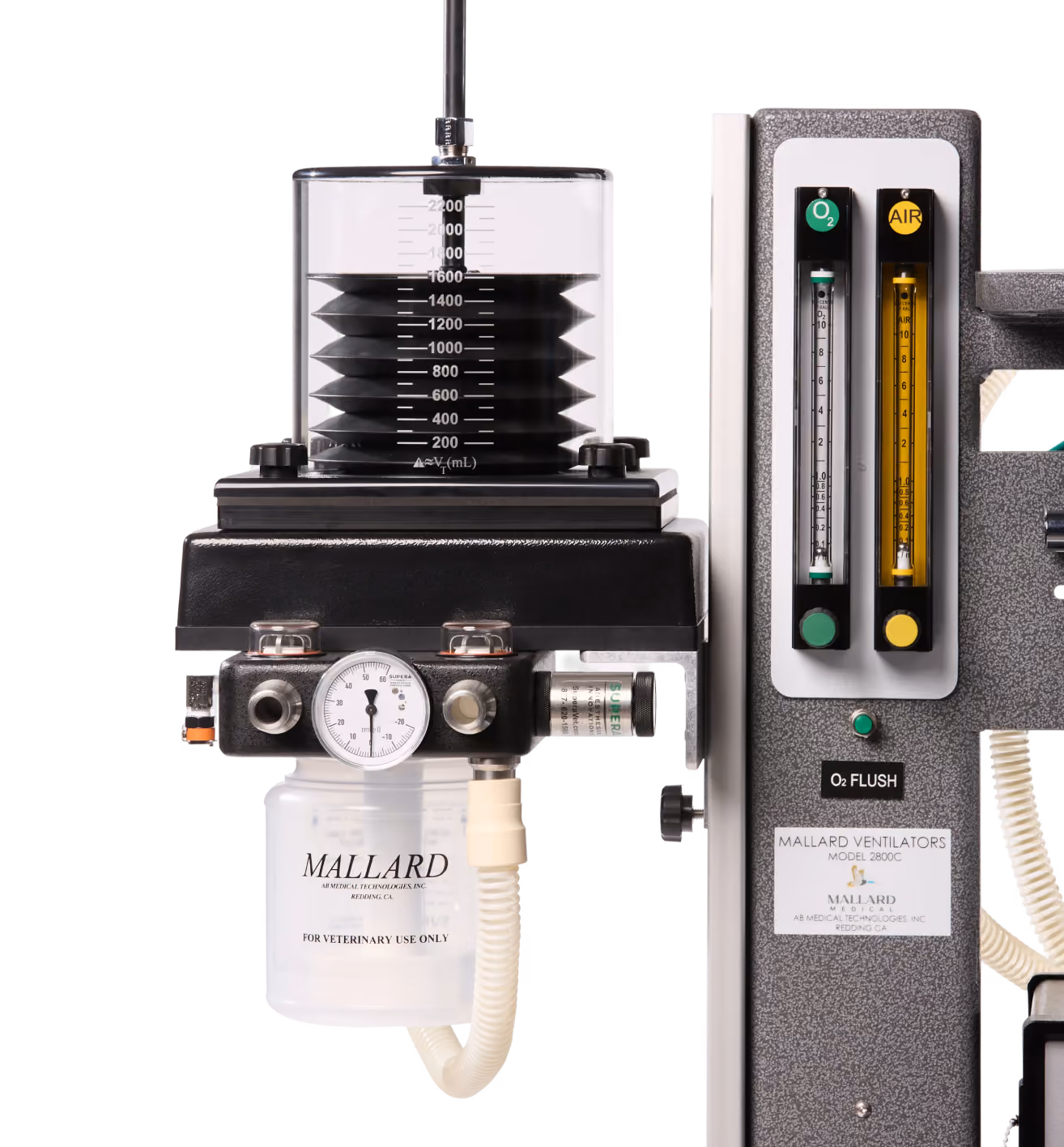

Option Pediatric Bellows Assembly (Model 28PBA)

No disassembly required for cleaning

Built to last, custom designed frame protects all critical components

GCX mounting rail for additional shelves or monitors

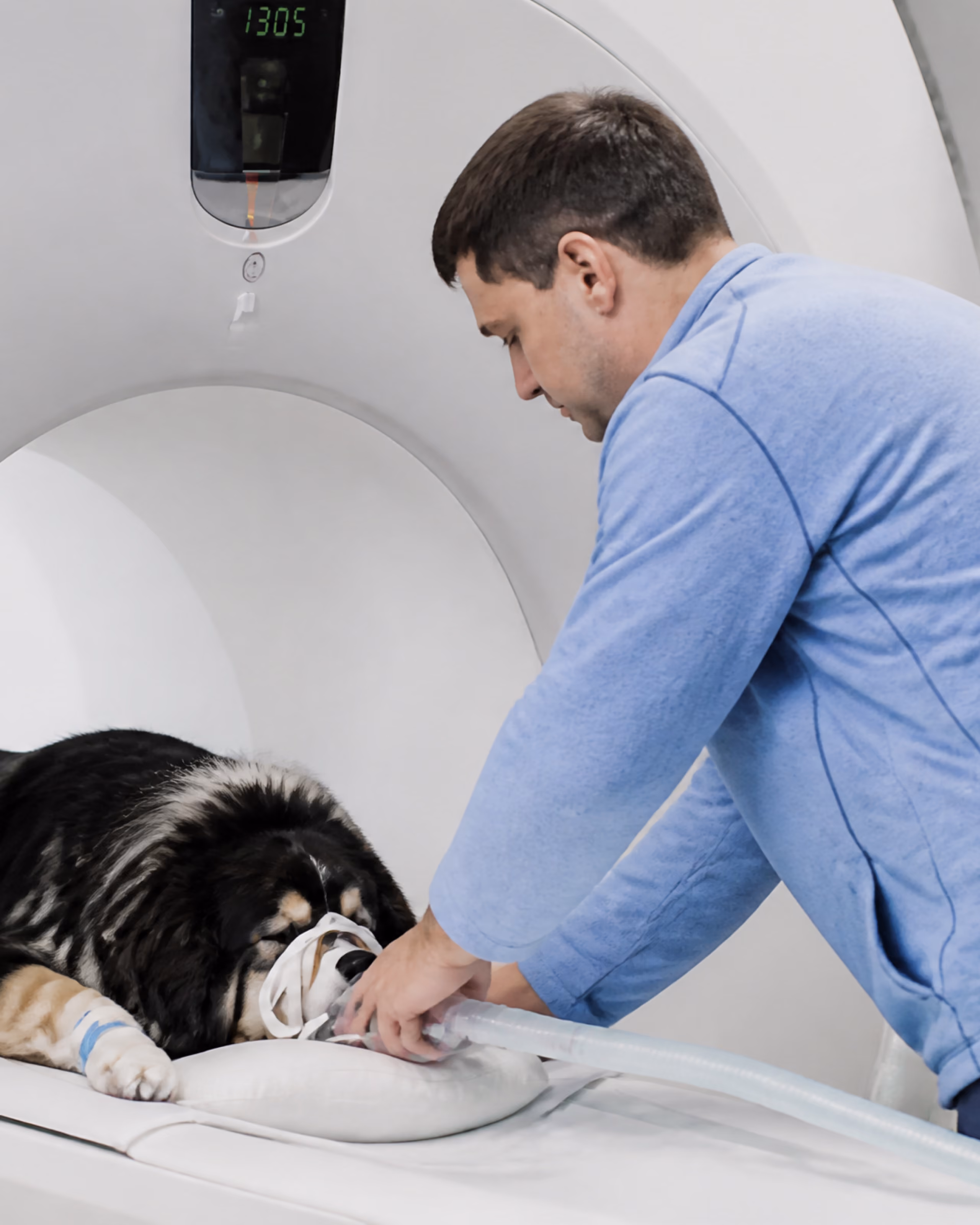

Optional M.R.I. compatible

 Quick change soda lime canister

Mallard 2800C

Features that our customers love

The Mallard 2800C is Easy to Clean

Mallard machines allow for minimal and easy servicing, which may be conducted in the medical facility by qualified technicians. The bellows are cleaned in place. No need to remove bellows for cleaning.

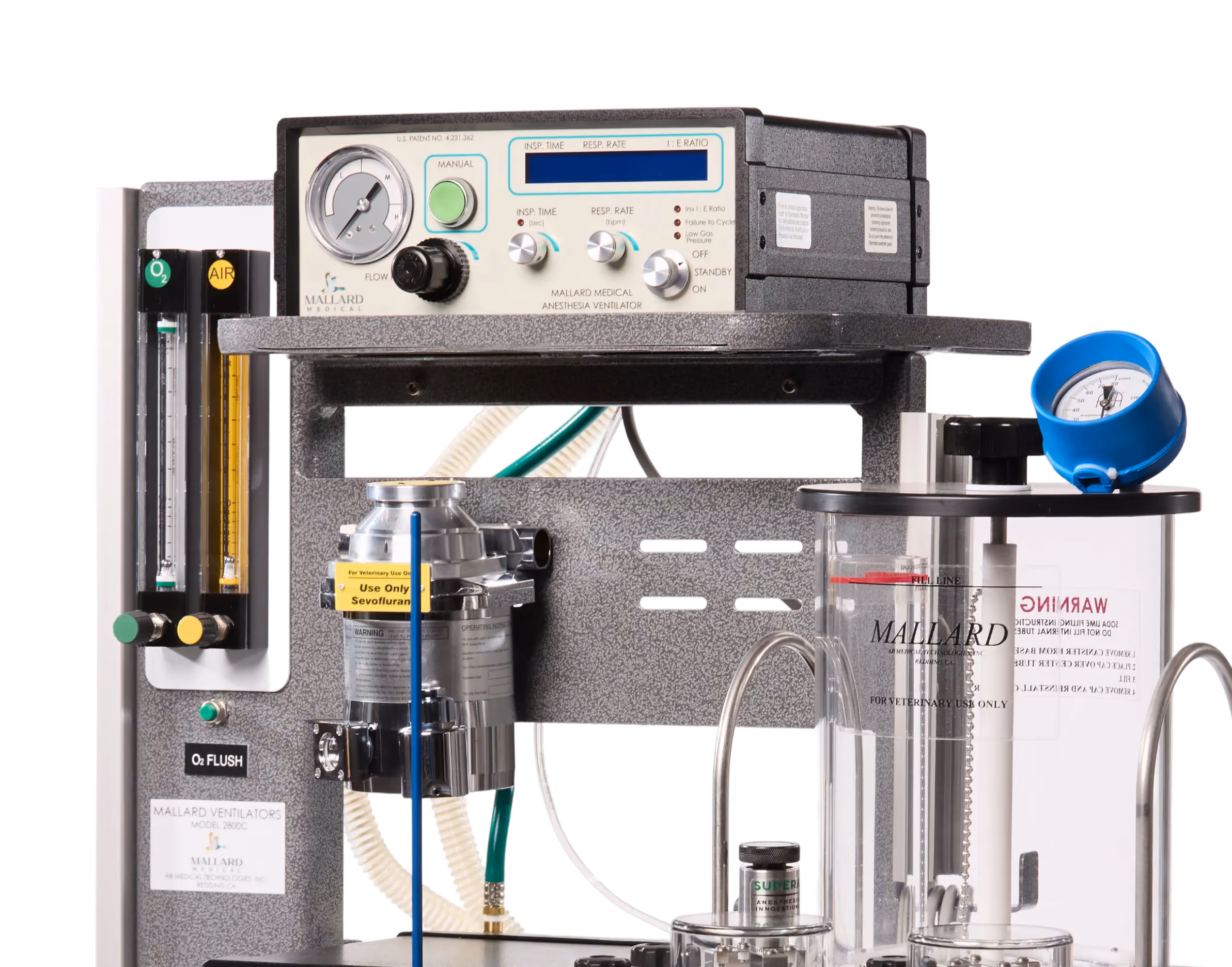

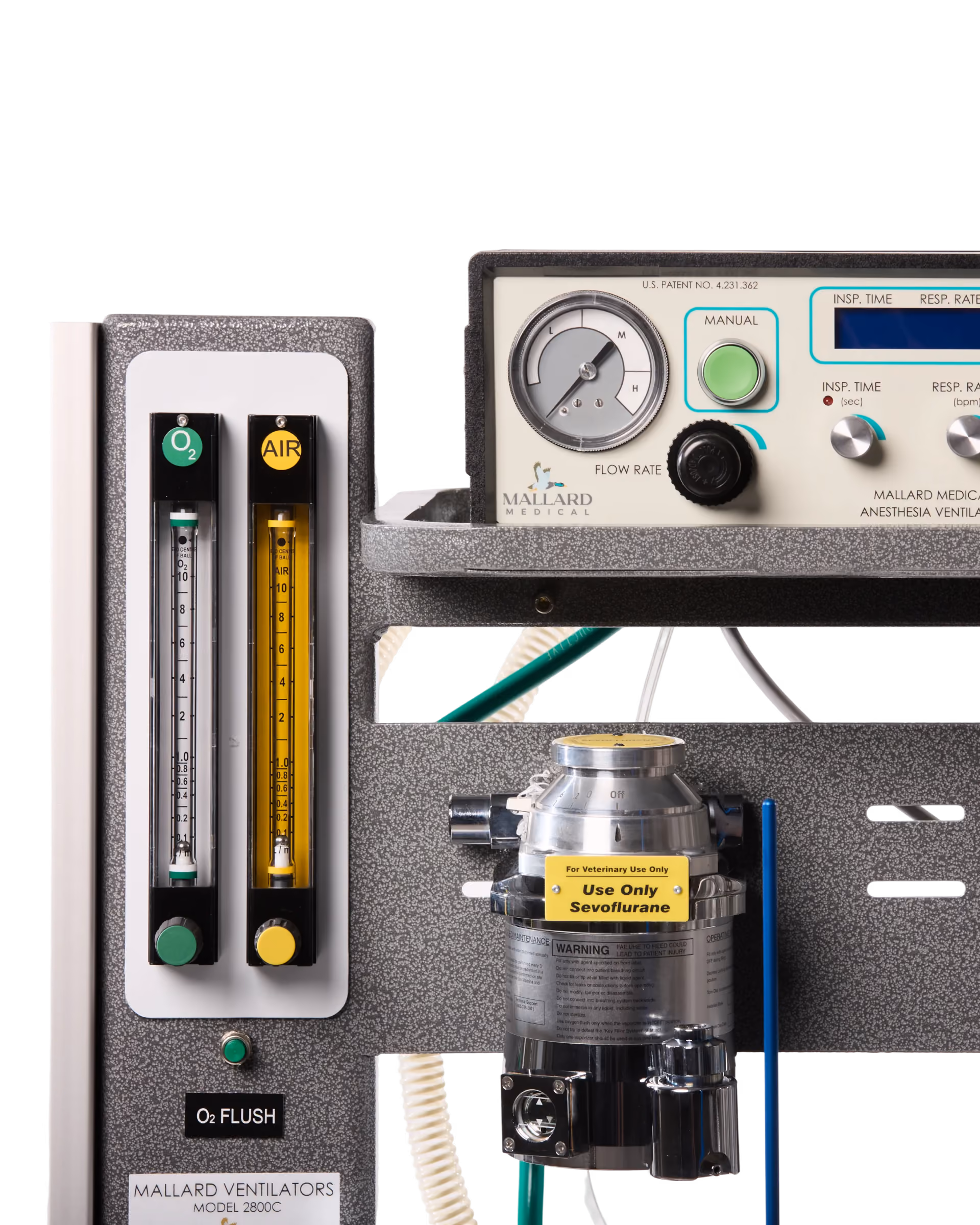

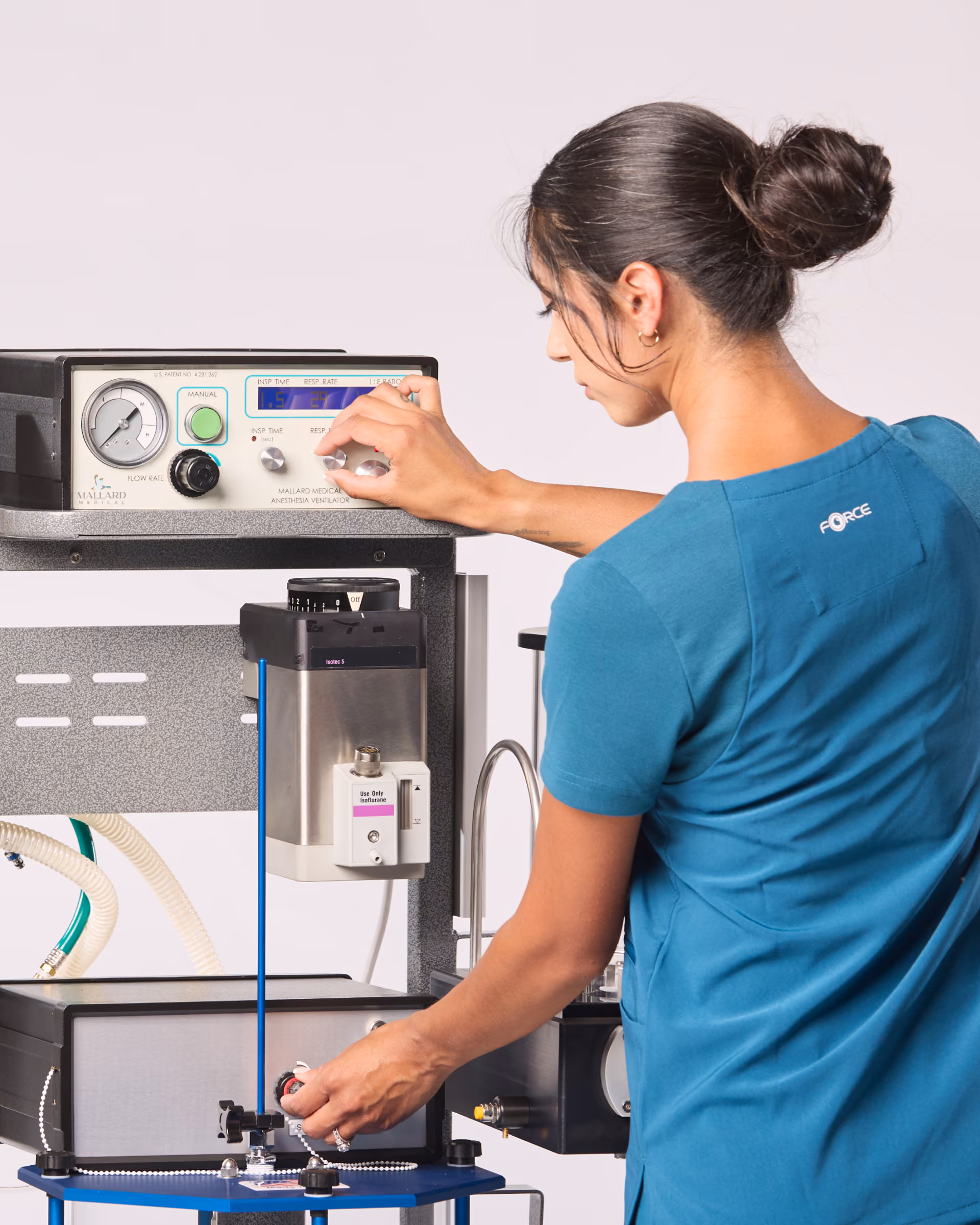

Microprocessor Based Electronic Control System

Durable electronic control systems lasts decades. No finiky touch screens or fancy software. The Mallard is simple and easy to use with an adjustable flow rate of 0-600 liters per minute with expanded range of flow rate selectivity

Convenient Mounting Rack

Newly designed stand for convenient location of all components and multiple vaporizers. GCX mounting rail for mounting physiological monitors and other accessories

Extremely Quiet & Smooth

The Mallard 2800C is the quietest anesthesia ventilator on the market. Our customers consistently comment on how quiet the Mallard 2800C is.

Technical Specifications


Bellows Orientation



LED Display

Alarms and Alerts

Safety System

Gas Scavenger

Absorber Volume For Soda Lime

Size & Weight


A microprocessor based, electronic, time cycled, pressure limited, anesthesia ventilator

Inverted (Ascending)

18 Liter Bellows for Large Animals with Large Animal Absorber Circuit

  • Inspiratory Time - .1 to 3 seconds
  • Inspiratory Flow - 10 - 650 LPM
  • Inspiratory Pressure Rate - 10 - 70cm H20
  • Pneumatic Manual Push Button for Inspiration
  • Inspiratory Time Indicator
  • Rate (BPM)
  • I:E Ratio
  • Failure to Cycle - Visual Audible Alarm
  • Low Gas Pressure Failure - Visual Audible Alarm
  • Power Failure - Visual Audible Alarm

Overpressure Governor 80cm H20 (adjustable)

19mm port

6 Liter, Quick Change for Large Animals

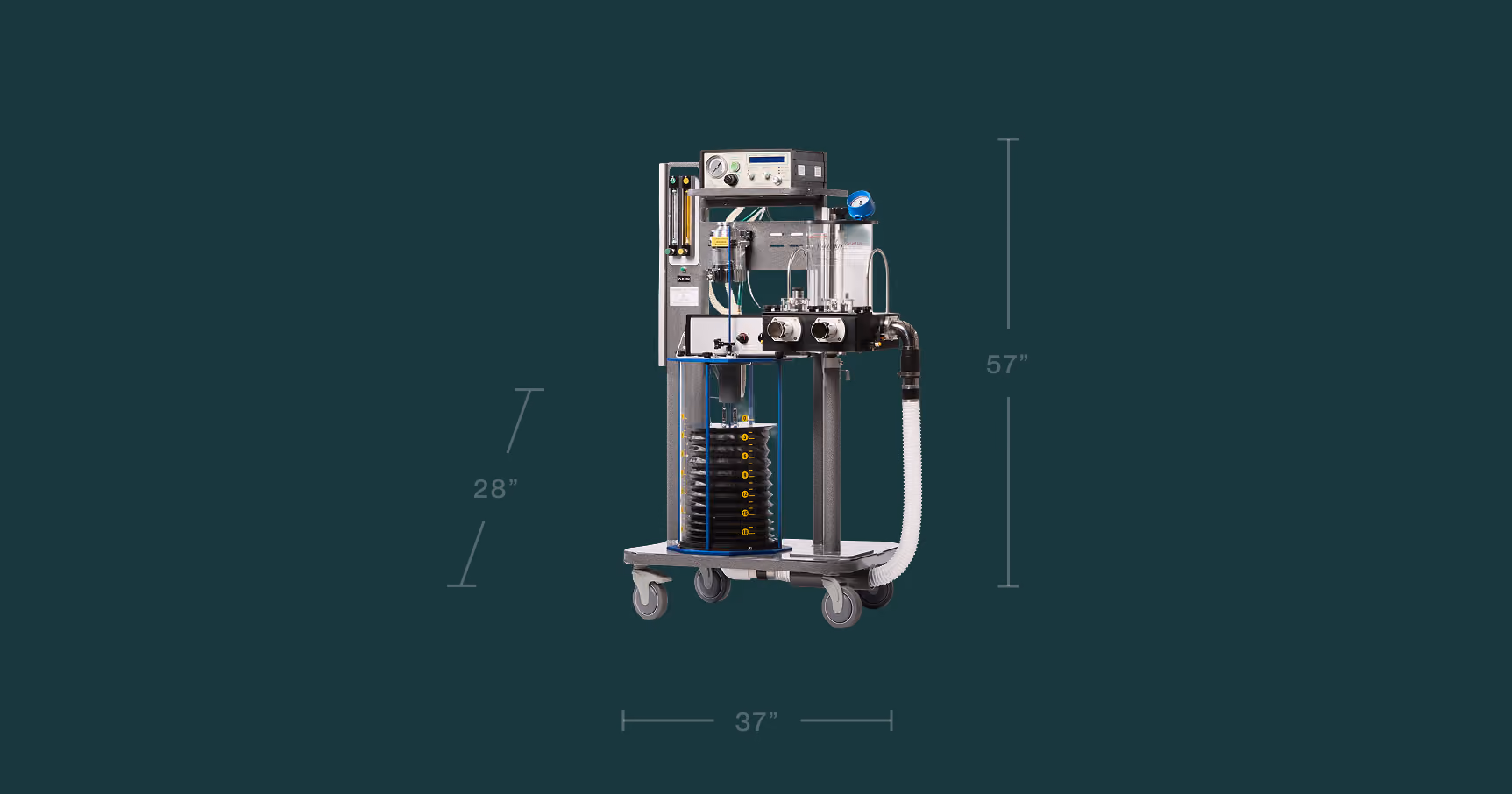

37” (94cm) Width x 28” (71 cm) Depth x 57” (145cm) Height. Weight 130lbs. 59Kg

Note: Depth and Width Sizes above account for outboard hoses and fittings. The footprint of the base of the cart is 30” (76cm) Width x 24” (61cm) Depth

  • Medical Air Option: (Optional 0-10 L/M Air Flow Meter and plumbing to mix medical air with default oxygen anesthesia gas.)
  • Optional Vaporizer and Mounts
