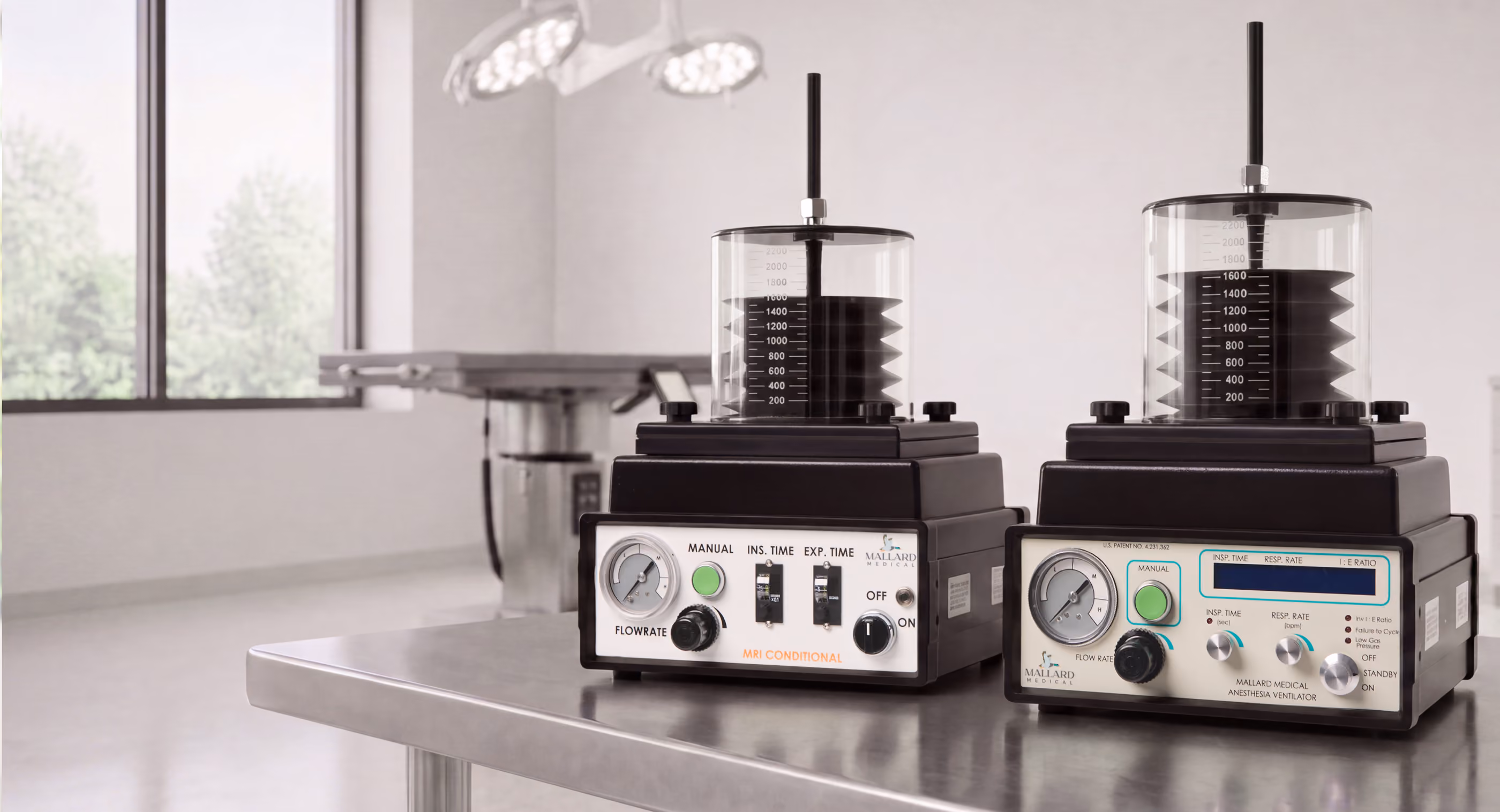

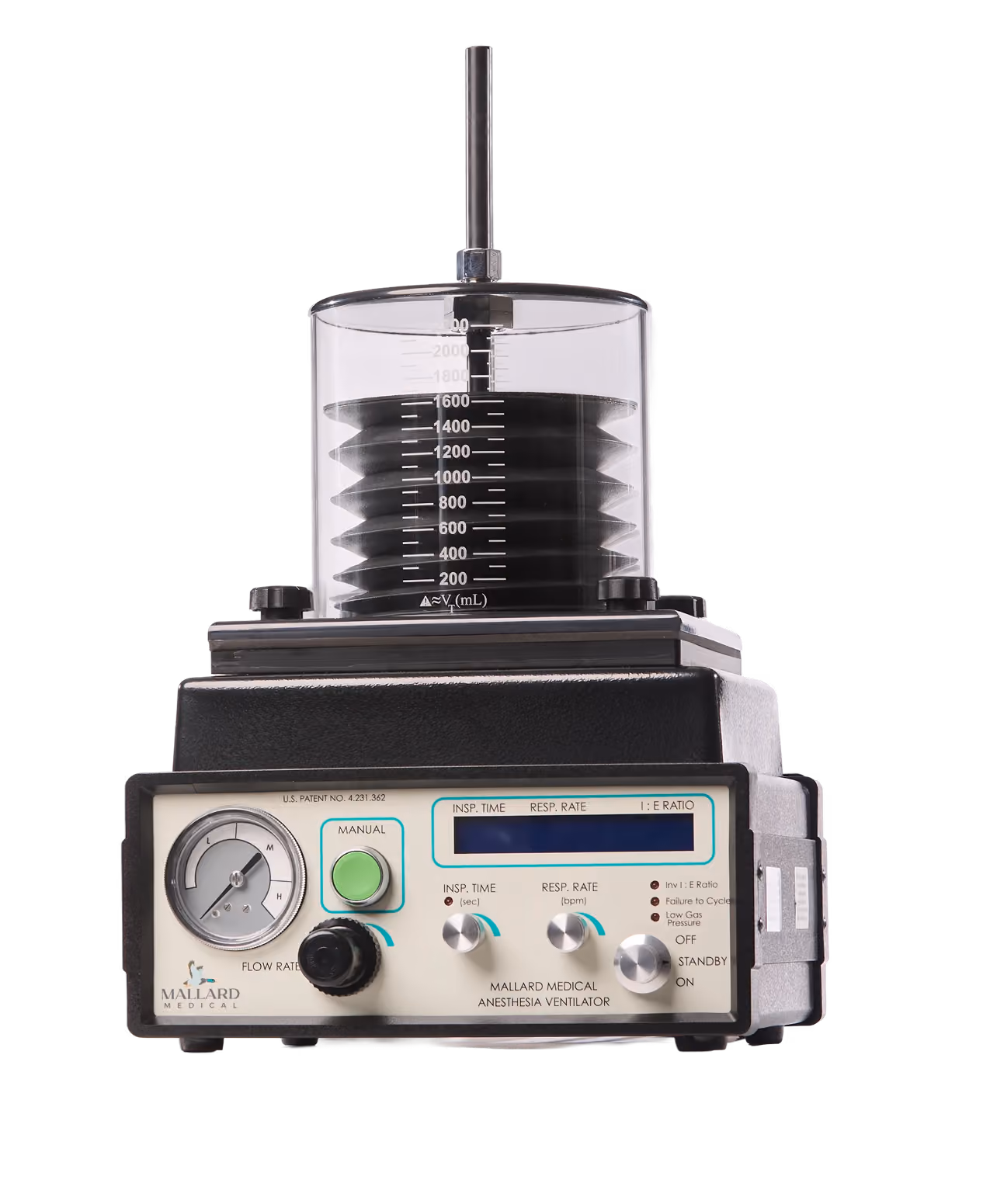

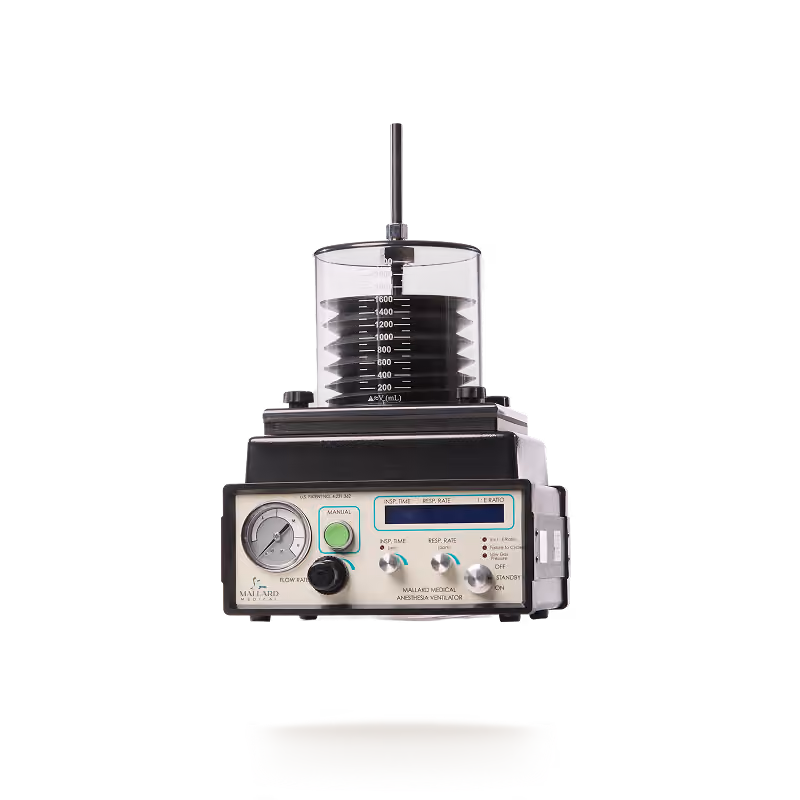

Mallard Model 2400V Small Animal Ventilator

The world's most reliable small animal ventilator.

22 Years of Proven Clinical Application

Inverted bellows, ascending during exhalation as used in human anesthesia ventilators

Flow rate adjustable from 0- 120 Liters per minute with expanded range of flow rate selectivity

Microprocessor Based Ventilator

Robust LCD Display

Compatible with Most Anesthesia Systems

Enhance the administration of inhalation anesthesia

Essential for extended surgeries or patients with compromised lung function required for cleaning

Optional M.R.I. compatible

Mallard Model 2400V Small Animal Ventilator

Features that our customers love

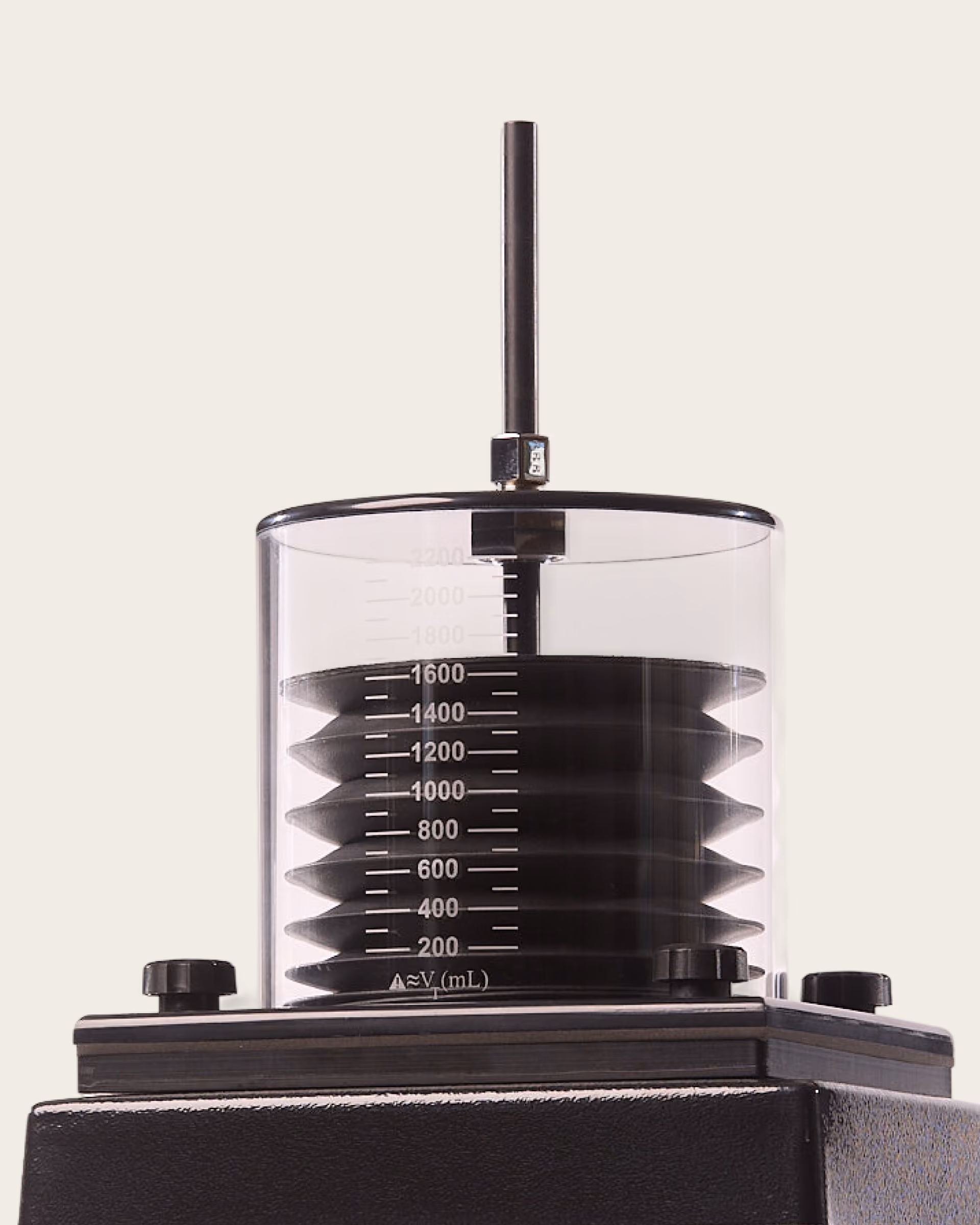

The Mallard 2400V is easy to clean

Mallard machines allow for minimal and easy servicing, which may be conducted in the medical facility by qualified technicians. The bellows are cleaned in place. No need to remove bellows for cleaning.

Microprocessor based electronic control system

Durable electronic control systems lasts decades. No finicky touch screens or fancy software. The Mallard is simple and easy to use with an adjustable flow rate of 0-600 liters per minute with expanded range of flow rate selectivity.

A Legacy of Quality and Reliability

The Mallard 2400V has been used by the worlds best veterinarians and veterinary universities for over 22 years.

Extremely quiet & smooth

The Mallard 2400V is the quietest anesthesia ventilator on the market. Our customers consistently comment on how quiet the Mallard 2400V is.

Technical Specifications


Bellows Orientation



LED Display

Alarms and Alerts

Safety System

Gas Scavenger

Absorber Volume For Soda Lime

Size & Weight


A microprocessor based, electronic, time cycled, pressure limited, anesthesia ventilator


Selectable - 200 - 2,200ml
Optional: Pediatric Bellows Optional 50 - 300ml

Optional: Expanded Bellows - 200 - 3,000ml

  • Inspiratory Time - .1 to .3 seconds
  • Inspiratory Flow - 1 - 120 LPM
  • Inspiratory Pressure Rate - 10 - 80cm H20
  • Rate - 2 - 80 BPM
  • Pneumatic Manual Push
  • Button for Inspiration
  • Inspiratory Time Indicator
  • Rate (BPM)
  • I:E Ratio
  • Failure to Cycle   -   Visual-Audible Alarm
  • Low Gas Pressure Failure   -   Visual-Audible Alarm
  • Power Failure   -   Visual-Audible Alarm

Overpressure Governor 80cm H20 (adjustable)

19mm port

6 Liter, Quick Change for Large Animals

  • 12” Width x 10” Depth x 19” Height (30 cm width) x (25 cm depth) x (48 cm height)
  • 10 lbs. (4.5 kg)

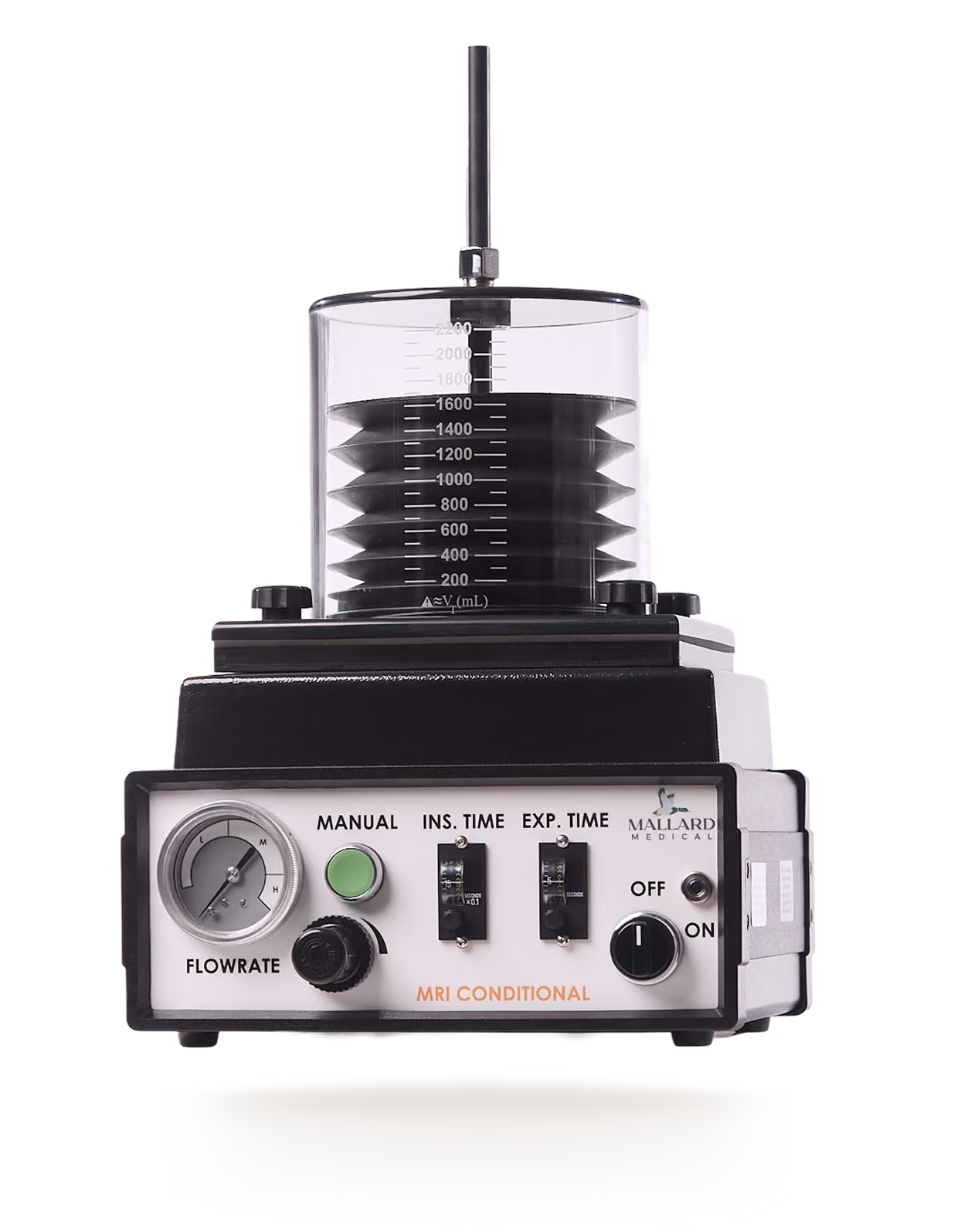

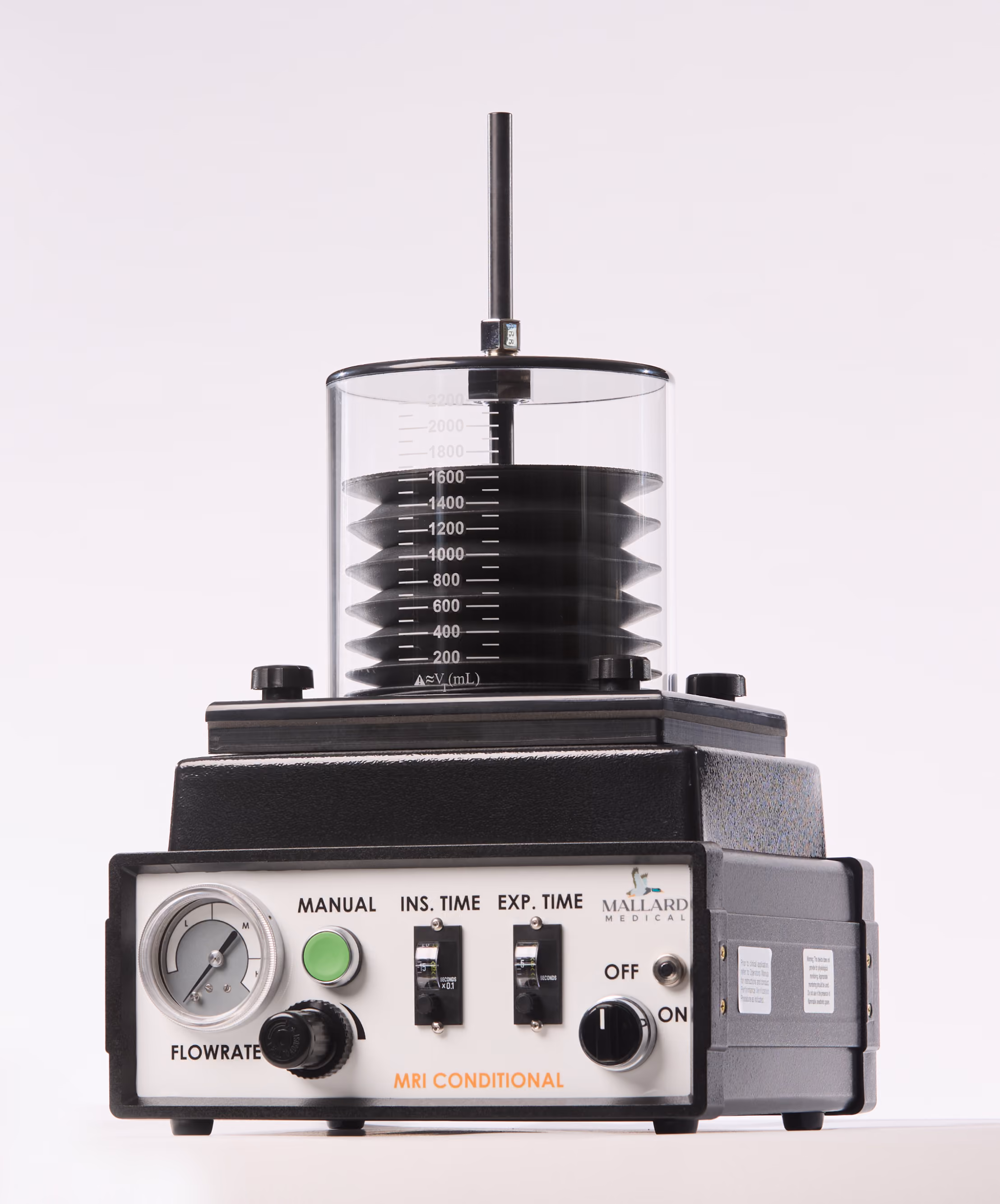

  • Available in MRI conditional model

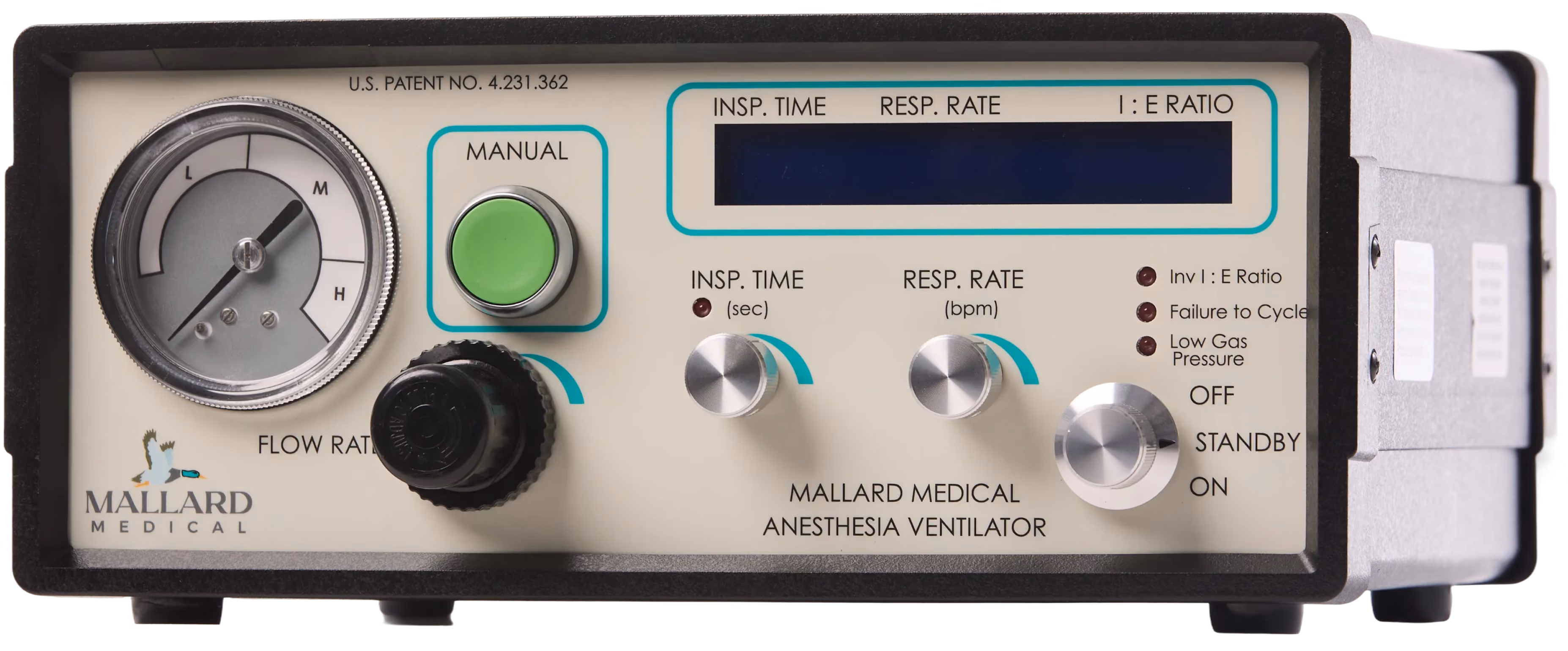

Get to know the Mallard 2400V

A. Bellows
B. Flow Rate Gauge
Manual Inspiration Button
D. Flow Rate Control
E. Inspiratory Time Adjust
F. Respiration Rate Adjust
. Mode Switch
H. LCD Display Screen

Mallard Model 2400v Small Animal Ventilator overview
